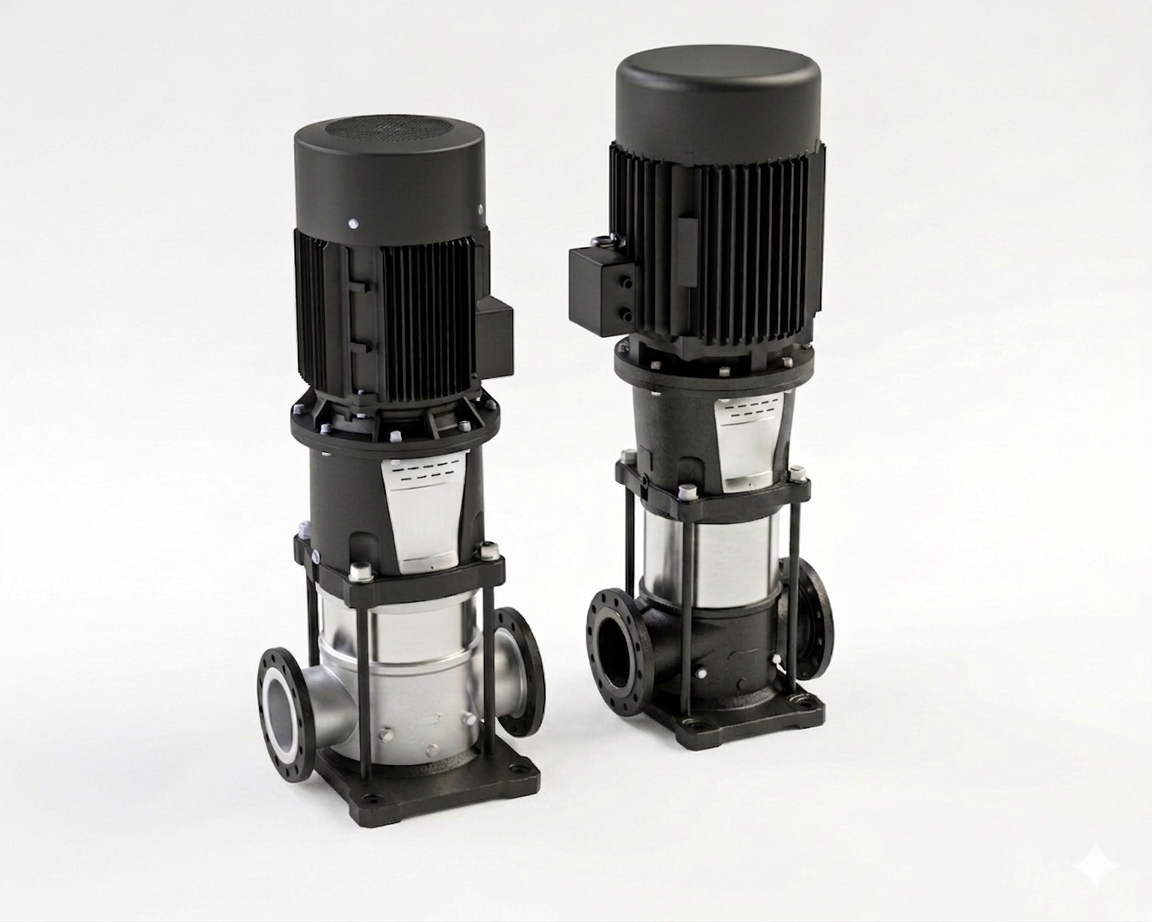

MV-MVS XL Series vertical multistage centrifugal pumps are designed to provide efficient and reliable operation in industrial applications requiring high flow rates. Their compact in-line design, with suction and discharge connections positioned on the same axis, allows easy integration into pumping systems. Developed with a focus on high hydraulic efficiency and low energy consumption, the series is suitable for applications including water supply, pressure boosting, industrial fluid transfer, water treatment and irrigation systems
MV-MVS XL SERIES
-
Superior Material Quality: The pump head and chassis are made of high-strength cast iron. All wet parts in contact with the fluid are made of stainless steel (EN 1.4301), providing complete corrosion resistance.
Easy Maintenance and Leak-Proof: All our series are equipped with a removable cartridge-type mechanical seal, allowing for quick intervention in case of malfunction or maintenance.
Optimized Hydraulic Structure: The outer casing offers long-lasting performance thanks to the perfect combination of four robust tension bolts and an improved hydraulic system.
Wide Range of Applications: A wide range of models with various capacities and stages is offered to fully meet the specific needs of your projects.
Flow rate range: 255 m3/h - 395 m3/h
Maximum flow rate: 520 m3/h
Maximum head: 400 mSS
Maximum operating temperature: 70°C
Vertical Multistage Centrifugal Pumps
- MV-MVS XL SERIES
MV-MVS XL Series vertical multistage centrifugal pumps designed for high-capacity applications, with a flow range of 255–400 m³/h
MV-MVS L SERIESMV-MVS L Series vertical multistage centrifugal pumps designed for high hydraulic efficiency and low energy consumption, with a flow range of 95–215 m³/h
MV-MVS M SERIESMV-MVS M Series vertical multistage centrifugal pumps designed for high hydraulic efficiency and low energy consumption, with a flow range of 1–85 m³/h
